Seamless Maintenance: Integrating Insulation Health Checks into Your Routine

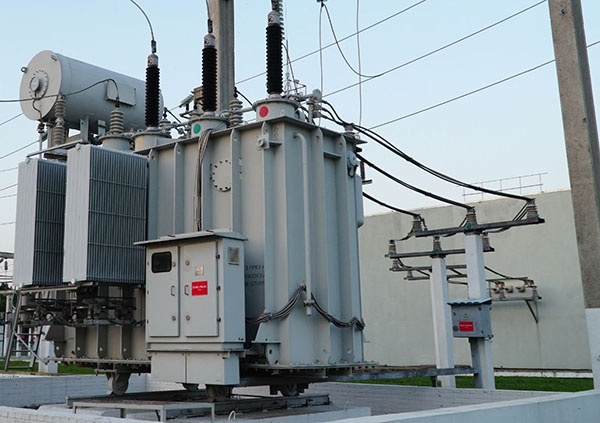

In the electric power industry, maintaining the health of transformers is crucial to ensuring the reliable operation of the grid. One of the most vital aspects of transformer maintenance is the condition of the insulation. Properly functioning insulation prevents electrical shorts, manages heat, and prolongs the transformer’s lifespan. When insulation fails, it can lead to costly repairs, unplanned downtime, and even catastrophic failures. As a result, incorporating insulation health checks into your regular maintenance routine can prevent many of these issues, saving both time and money while optimizing transformer performance.

This article will walk through how to seamlessly integrate insulation health checks into your existing maintenance routines, with a focus on practicality, tools, troubleshooting techniques, and best practices. Whether you are working on a small distribution transformer or a large power transformer, these practices can be scaled to fit your operation.

Why Insulation Health Checks Are Crucial

Insulation is the unsung hero inside a transformer, protecting its internal components from electrical, mechanical, and environmental stress. Without proper insulation, transformers are at risk of overheating, electrical faults, and even failure, which leads to unexpected costs and downtime. Regularly inspecting and maintaining the insulation allows for early detection of problems, providing you with the opportunity to take corrective action before the transformer suffers severe damage.

Here are some specific reasons why insulation health checks are essential:

• Prevention of Failure: Degraded insulation is one of the leading causes of transformer failure. Early detection helps prevent failures before they occur.
• Cost Efficiency: A proactive approach to insulation maintenance minimizes emergency repair costs and extends the lifespan of the transformer.
• Enhanced Performance: Healthy insulation ensures optimal performance, including better heat dissipation and improved load handling.
• Compliance and Safety: Regular checks ensure that transformers are compliant with safety standards and can reduce the risk of safety hazards.

As a professional electrical testing expert, I’ve witnessed firsthand how early detection of insulation issues can extend transformer life and reduce costs. During one maintenance cycle, an insulation resistance test revealed slight degradation in an older transformer. By replacing the insulation early, we avoided a costly failure and improved the transformer’s efficiency.

Integrating Insulation Health Checks into Your Routine

To integrate insulation health checks into your routine, you’ll need to make these tests an integral part of your existing maintenance plan. This involves identifying key intervals for testing, training your team, and employing the right diagnostic tools.

1. Set Regular Inspection Intervals

The frequency of insulation checks depends on various factors, including the age of the transformer, the environmental conditions, and the load it bears. Typically, the following intervals can serve as a guideline:

• New Transformers: Perform insulation checks once a year to establish baseline performance.
• Mid-Life Transformers (5–10 years): Conduct checks every 6–9 months.
• Older Transformers (10+ years): Inspect every 3–6 months, with more frequent testing during high-demand seasons.

For example, in a case I handled, a 15-year-old transformer in a busy industrial plant had suffered from recurring minor faults. By incorporating insulation health checks every 3 months, we were able to detect early signs of moisture buildup in the insulation that could have led to a serious failure.

2. Implement Predictive Maintenance

Predictive maintenance involves using data and diagnostic tools to forecast when insulation may be nearing failure. This is an excellent way to prevent unexpected failures by detecting early signs of insulation degradation. Tools like partial discharge (PD) testers and insulation resistance testers can help monitor the health of the insulation in real-time.

Predictive tools provide early warning signs that would otherwise go unnoticed in routine visual inspections. For instance, partial discharge activity is one of the most reliable indicators of insulation stress. By integrating partial discharge testing into your regular checks, you can catch issues long before they result in failure.

Essential Tools for Insulation Health Checks

To successfully perform insulation health checks, you’ll need to equip your team with the right tools. Here are the most commonly used tools for assessing insulation health:

1. Insulation Resistance Tester

The insulation resistance tester is one of the most effective tools for determining the condition of transformer insulation. This device applies a high-voltage test to the insulation, measuring the resistance. The higher the resistance, the better the insulation condition.

• Best Practice: Ensure that the Insulation Resistance Testers is calibrated and tested regularly. Before using the Insulation Resistance Testers, verify the resistance value using known standards for similar transformers to ensure accurate readings.

2. Partial Discharge Tester

Partial discharge (PD) is a localized electrical discharge that occurs when the insulation fails to contain the electric field within the transformer. A PD tester measures these discharges and helps identify weak spots in the insulation.

• Best Practice: PD testing should be done regularly, especially in transformers operating under heavy loads. Any increase in PD levels should be investigated immediately.

3. Dissolved Gas Analysis (DGA) Kit

For oil-filled transformers, DGA is a critical tool for detecting insulation breakdowns. It identifies gases dissolved in the transformer oil, which can indicate problems like arcing, overheating, or insulation degradation.

• Best Practice: Perform DGA tests every 6 months, or more frequently in high-risk environments. Any abnormal increase in gases like acetylene or methane should trigger further inspection.

4. Thermographic Cameras

Infrared thermography is a valuable tool for identifying hotspots within a transformer that could be caused by deteriorating insulation. This tool detects temperature anomalies that can signal overheating, which could be a result of insulation breakdown.

• Best Practice: Regular thermal inspections should be part of your routine, especially after long periods of operation.

Troubleshooting Common Insulation Issues

Here are some common insulation problems and how to troubleshoot them effectively:

1. Low Insulation Resistance

Low insulation resistance is a key sign that the transformer insulation is degrading. Common causes include moisture ingress, contamination, or aging of the insulation material.

• Troubleshooting Steps:
  • Check the transformer’s environmental conditions. Is there excessive moisture or dust?
  • Perform a moisture test and assess if the insulation is absorbing water.
  • If resistance is low, consider drying the insulation or replacing the affected parts.

2. Partial Discharge Activity

Increased partial discharge (PD) activity often indicates that the insulation is experiencing localized breakdowns.

• Troubleshooting Steps:
  • Perform a PD scan and locate the specific areas of high discharge.
  • Use high-resolution PD testing to differentiate between minor, moderate, and severe activity.
  • If activity is severe, schedule repairs or replacement of the insulation to prevent further damage.

3. Contamination or Dirt in Insulation

Physical contamination like dirt or chemical spills can deteriorate insulation material, leading to breakdowns.

• Troubleshooting Steps:
  • Perform a visual inspection of the transformer and clean any visible dirt or debris from the insulation.
  • Use dielectric cleaning methods to restore the insulation surface.
  • For severe contamination, replace the insulation entirely.

Training Your Team

Proper training of your maintenance team is crucial to ensure that insulation health checks are carried out efficiently and accurately. Here’s how to get your team on board:

• Hands-on Training: Conduct regular workshops where team members can practice using diagnostic tools like Meggers, PD testers, and thermographic cameras.
• Interpretation of Results: Ensure that technicians are trained to interpret the results from diagnostic tests and know when to escalate issues to senior engineers.
• Stay Updated: Transformer technology is continuously evolving. Ensure your team is trained on the latest diagnostic methods, tools, and best practices.

Conclusion

Integrating insulation health checks into your routine maintenance is essential for keeping transformers running efficiently and preventing costly failures. By setting regular inspection intervals, using the right tools, troubleshooting effectively, and training your team, you can ensure that your transformers stay in top condition. Additionally, with the advent of predictive maintenance technologies like IoT and AI, transformer management will only become more proactive, reducing the need for costly repairs and improving overall performance.

Taking the time to conduct regular insulation health checks can provide long-term benefits, not only in terms of performance but also in reducing operational costs and enhancing safety.
